What is jq?

jq is a lightweight and flexible command-line JSON processor. It extracts and manipulates data from JSON documents with simple and powerful filters, letting you transform JSON data in various ways.

Why use jq?

  • Filtering: quickly filter, slice, and extract specific parts of JSON.
  • Transformation: modify JSON structures, useful for cleaning, formatting, or transforming JSON data.
  • Simplicity: a simple syntax lets you do complex manipulations easily.

Why jq is used with GraphQL

GraphQL responses are returned in JSON format. Since GraphQL allows flexible queries, the structure of the returned data can vary significantly, making it necessary to manipulate the response for specific use cases. This is where jq comes in: after querying a GraphQL endpoint, you might need to isolate or transform the returned JSON data for processing, and jq makes this easy, letting you select only the fields you need from the complex JSON response.

What is JSONPath?

JSONPath is a query language for JSON, similar to XPath for XML. It extracts specific parts of a JSON document based on a path expression, and is often used when interacting with JSON data in various programming environments.

Why use JSONPath?

  • Simplifies JSON querying: easy navigation and extraction from nested JSON structures using path expressions.
  • Integration with APIs: many tools and libraries support JSONPath for working with JSON-based APIs.
  • Efficient data extraction: extract only the data you need, saving time and resources.

Why JSONPath is used with GraphQL

GraphQL responses are JSON-based and can be deeply nested with numerous fields. JSONPath provides a simple, readable way to extract specific data from this structure, making it an excellent tool for working with GraphQL results.

Example usage

In real-world scenarios, especially with GraphQL APIs, tools like jq and JSONPath help you interact with responses more efficiently. Zendro’s GraphiQL integrates these filtering techniques directly into its interface.

Filtering in Zendro

Zendro’s GraphiQL interface provides a flexible and interactive way to query the data, applying filters directly to your queries to refine the response. It lets you request only the fields you need, and presents the data in JSON format.

In the results, you can see the JSON output, which can be further processed with jq or JSONPath for specific tasks, such as:

  • Filtering specific fields: extract only the fields that matter to you from the GraphQL response.
  • Nested data extraction: deal with nested data structures, and query deeper levels of the data tree with additional tools like jq or JSONPath.

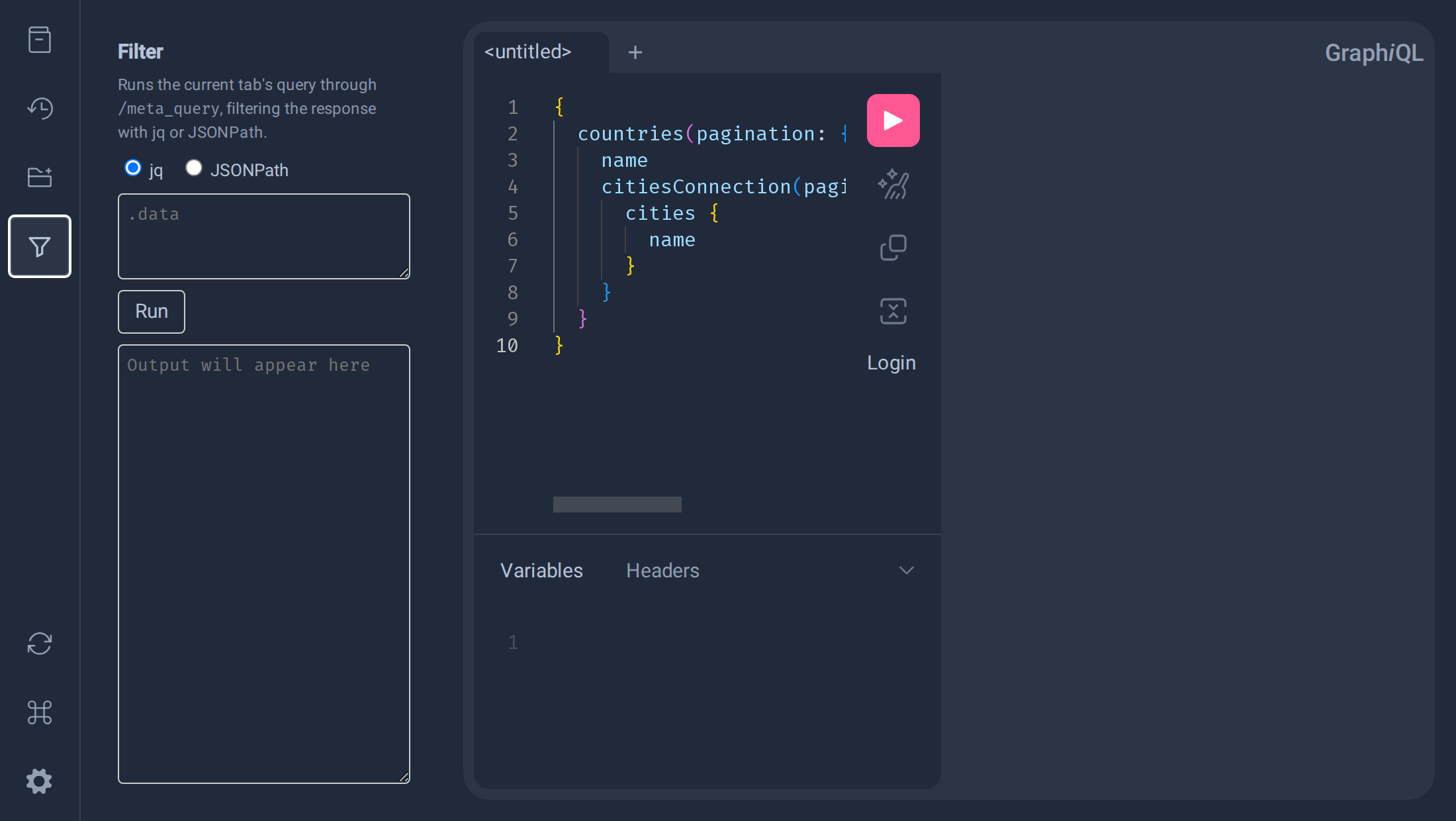

Once you have a query, at the top of the interface there are several buttons. Clicking Filter opens a section at the bottom of the screen where you can select jq or JSONPath, write your filter, and see the results.

Filter.png Filter_options.png

The filters you use are applied to the query results. You can reproduce the results by accessing the Zendro-BrAPI data warehouse.

Filtering with jq

For example, if we want the names of the studies in the trial example, calling only 2 (limit:2), we expect 2 names:


Explanation

  • .trials[]: .trials accesses the trials property of the root object. The [] selects all elements of that array — in jq, [] iterates over an array to extract all its elements.
  • .studiesFilter[]: same idea — selects the studiesFilter property inside each element of trials, again using [] to access each element within studiesFilter.
  • .studyName: finally, accesses the studyName property inside each studiesFilter object.

Or, to get only the variable name and its value, ignoring null values:

[.trials[].studiesFilter[].observationsFilter[] | select(.value != null) | { name: .observationVariable.observationVariableName, value: .value }]

Explanation

  • .trials[]: accesses the trials property of the root object, selecting all elements of the trials array.
  • .studiesFilter[]: within each trials element, accesses studiesFilter and iterates over its elements.
  • .observationsFilter[]: within each studiesFilter element, accesses observationsFilter and iterates over its elements.
  • select(.value != null): filters the elements of observationsFilter, keeping only those where value is not null.
  • { name: .observationVariable.observationVariableName, value: .value }: creates a new object for each filtered element, extracting observationVariableName from observationVariable and value from the current object, renamed name and value.

Result:

{
  "data": [
    {
      "name": "fresh root yield|CO_334:0000013",
      "value": 5
    },
    {
      "name": "germination count|CO_334:0000166",
      "value": 93.3
    },
    {
      "name": "harvest index variable|CO_334:0000015",
      "value": 0.2
    },
    {
      "name": "initial plant vigor assessment 1-5|CO_334:0000220",
      "value": 4
    },
    {
      "name": "plant height measurement in cm|CO_334:0000018",
      "value": 240
    },
    {
      "name": "plant stands harvested counting|CO_334:0000010",
      "value": 9
    },
    {
      "name": "rotten root percentage|CO_334:0000229",
      "value": 0
    },
    {
      "name": "selected variety boolean 0&1|CO_334:0000232",
      "value": 0
    },
    {
      "name": "fresh root yield|CO_334:0000013",
      "value": 9
    },
    {
      "name": "germination count|CO_334:0000166",
      "value": 60
    },
    {
      "name": "harvest index variable|CO_334:0000015",
      "value": 0.37
    },
    {
      "name": "initial plant vigor assessment 1-5|CO_334:0000220",
      "value": 3
    },
    {
      "name": "plant stands harvested counting|CO_334:0000010",
      "value": 9
    },
    {
      "name": "selected variety boolean 0&1|CO_334:0000232",
      "value": 0
    }
  ]
}

Filtering with JSONPath

Now, if we want the IDs of the studies in the trial example, calling only 2 (limit:2), we expect 2 IDs:


Explanation

JSONPath’s syntax is very similar to file paths or regular expressions. It navigates through a JSON object or array and extracts specific elements.

  • $: the dollar sign represents the root object — the starting point of the query.
  • .trials[*]: accesses the trials property of the root object and selects all elements of that array. The asterisk [*] selects all elements.
  • .studiesFilter[*]: selects the studiesFilter property within each trials object, again selecting all elements.
  • .studyDbId: finally, after traversing all elements of studiesFilter, selects the studyDbId property within each.

Key differences from jq

JSONPath does not support creating new objects like jq does with { name: .observationVariable.observationVariableName, value: .value }. To get both name and value in a combined result, you’d typically need separate queries and combine the results programmatically.

$.trials[*].studiesFilter[*].observationsFilter[?(@.value != null)].observationVariable.observationVariableName

$.trials[*].studiesFilter[*].observationsFilter[?(@.value != null)].value

Explanation

  • $.trials[*]: accesses the trials property of the root object and selects all elements.
  • $.studiesFilter[*]: within each trials element, selects the studiesFilter property and iterates over it.
  • $.observationsFilter[?(@.value != null)]: within each studiesFilter element, selects observationsFilter and filters elements where value is not null (similar to select(.value != null) in jq).
  • .observationVariable.observationVariableName: selects the observationVariableName property inside observationVariable.
  • .value: selects the value property within the filtered observationsFilter elements.

By combining GraphQL with tools like jq and JSONPath, you can efficiently retrieve and manipulate data, making your API interactions even more powerful.
